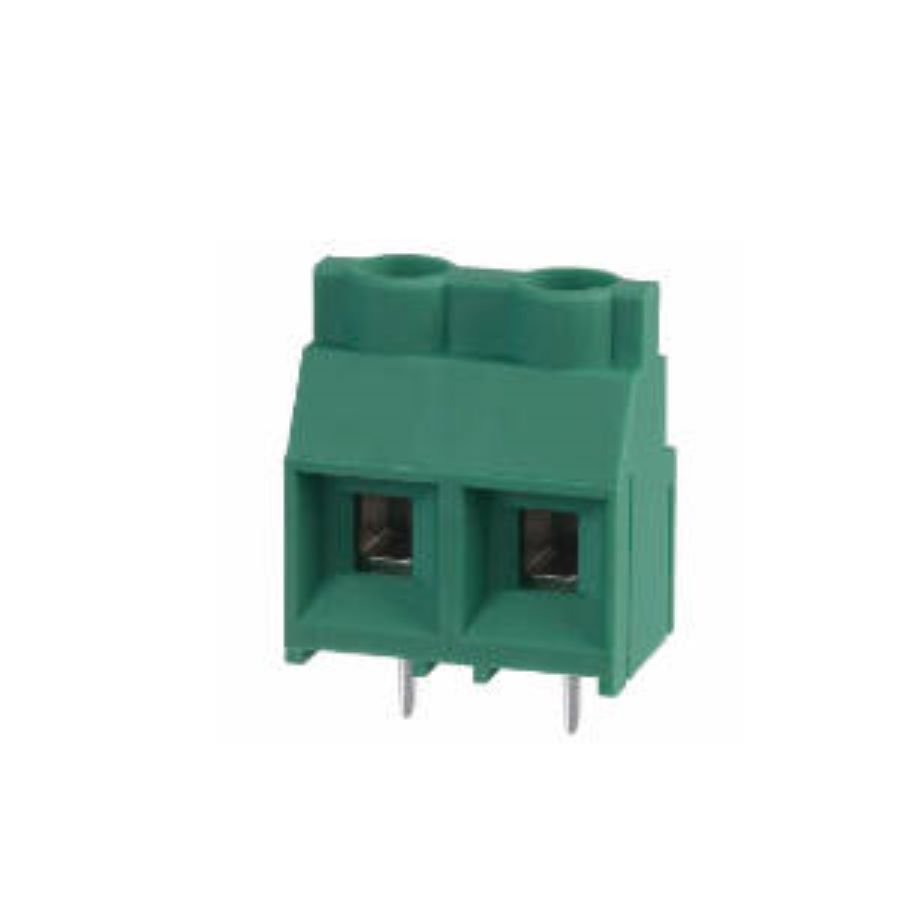

1714971
Manufacturer:
Phoenix Contact
Mfr.Part #:
1714971
Datasheet:
Description:
Terminal Blocks Through Hole 2 9.52 mm 30 A 300 V 30 AWG to 10 AWG
| Parameter | Value |
|---|---|
| Termination | Screw - Rising Cage Clamp |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 600 V |
| Pitch | 9.52 mm |
| Current Rating | 30 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal with Board |
| Color | Green |
| Number of Contacts | 2 |
| Mounting Style | Through Hole, PC Board, Screw, PCB |
| lead free status | Lead Free |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Nylon |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| size width | 12.5 mm |
| size length | 19.0 mm |
| size height | 21.5 mm |
| voltage rating ac | 500 V |
| Housing Color | Green |
| pin pitch | 9.50 mm |
| Wire Gauge | 10 AWG |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 10 AWG |
Stock: 7291
Distributors
pcbx
pcbxUnit Price$1.33914
Ext.Price$1.33914
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.33914 | $1.33914 |
| 10 | $1.01177 | $10.11770 |
